Building a Theme

In this tutorial, you’ll learn how to build a theme plugin for Gatsby. This tutorial is meant as a written companion to the Gatsby Theme Authoring Egghead course. Note: The video instructions are slightly outdated at times, thus the written instructions here are the source of truth.

Set up yarn workspaces

In this section, you’ll learn how to structure folders and configure yarn workspaces to develop Gatsby themes. You’ll create two workspaces, gatsby-theme-events and site.

In this example, gatsby-theme-events will be a dependency of site so you’ll run site to see everything working.

Create a new empty folder

Title your folder anything you wish. This example will use authoring-themes-tutorial.

Add a package.json

Create a package.json file in the new directory, with the following contents:

Set up gatsby-theme-events and site

In the authoring-themes-tutorial folder, create two new folders, gatsby-theme-events, and site.

Create a package.json file in each of the new folders. Your file tree will look like this:

In the package.json file in gatsby-theme-events, add the following:

  • The "name" corresponds to the yarn workspace you defined earlier, in the root-level package.json folder.
  • Because you’ll install gatsby-theme-events as a package, you have to specify a "main" entry point.
    • This file won’t do anything, but it does need to resolve, so create a new file in gatsby-theme-events called index.js.

This file is intentionally empty — because the main field is pointing to index.js, this file needs to exist for Node to properly resolve the package. To avoid confusion, add a small comment to indicate that the file doesn’t do anything; it just needs to exist and was left blank on purpose.

In the package.json file in site, add the following:

  • "private" is set to true, because you won’t be publishing the site to npm.
  • The "name" again corresponds to the yarn workspace you defined earlier, in the root-level package.json folder.

Add dependencies to site

Now add gatsby, react, react-dom, and gatsby-theme-events as dependencies in site:

🚨 If you use zsh, the * needs to be quoted, e.g. gatsby-theme-events@"*" or "gatsby-theme-events@*".

  • When you run yarn workspace site, it’s as if you were running that command while in the /site directory. The dependencies will be added to site, even though you’re not in the site directory.
  • You’re installing gatsby-theme-events@*, because you need the workspace to reference the unpublished gatsby-theme-events theme.

💡 For more details on using yarn workspaces, you might be interested to check out Gatsby’s blog post on setting up yarn workspaces.

You should now see the following dependencies in your site/package.json:

If you run yarn workspaces info, you’ll be able to verify that the site is using the gatsby-theme-events from the workspace.

Add peer dependencies to gatsby-theme-events

Targeting the gatsby-theme-events workspace, install gatsby, react, and react-dom as peer dependencies:

💡 The -P flag is shorthand for installing peer dependencies.

The gatsby-theme-events/package.json file should now include the following:

Set up site/gatsby-config.js

Create a gatsby-config.js file inside site:

Run site

Run site to verify that it’s working.

You should see a Gatsby site successfully running in development mode. Since there’s no content, visiting the site should serve a default Gatsby 404 page.

Add static data to a theme

In this example, you’ll source data from a YAML file into the gatsby-theme-events theme.

In the gatsby-theme-events directory, create a new data directory. Inside that, create a new file, events.yml.

Add some sample data:

To read this YAML data, you’ll need to install a few more dependencies:

💡 gatsby-source-filesystem will let you load the events.yml file. gatsby-transformer-yaml will let you parse it as YAML data.

Create a gatsby-config.js file in the gatsby-theme-events directory:

With this saved, restart the development server:

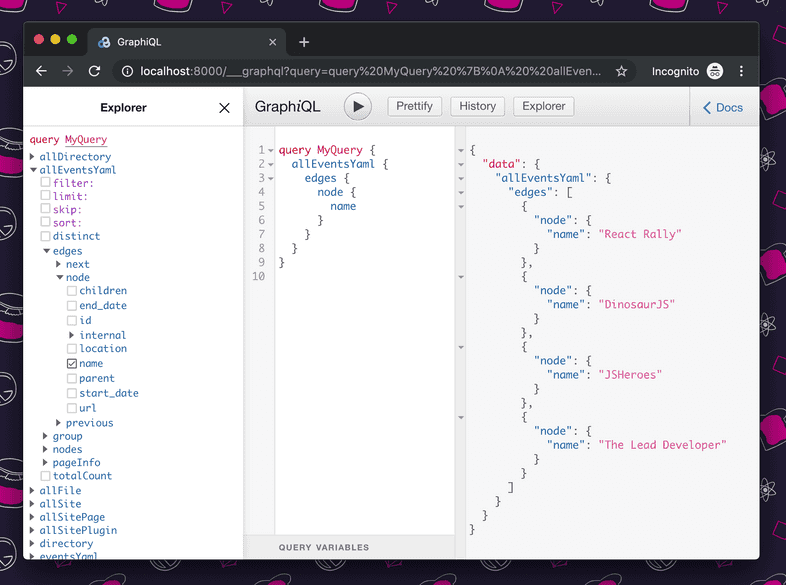

Open up the GraphiQL explorer for the site, and make a test query on allEvent:

When you execute the query, you should see the GraphQL server successfully return four event names:

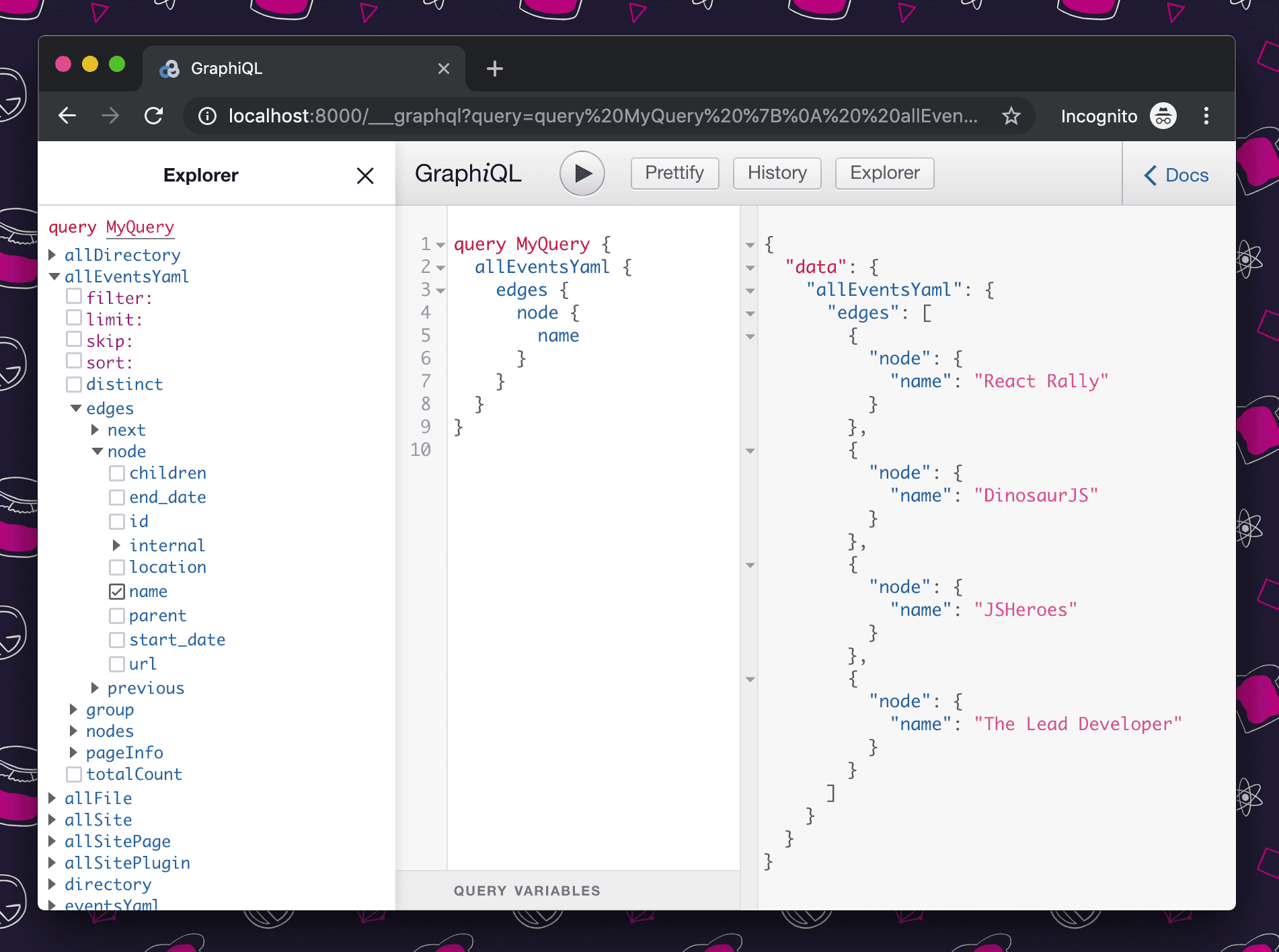

Successful execution of the previously described query, in the GraphiQL explorer

Create a data directory using the onPreBootstrap lifecycle

Create a gatsby-node.js file in gatsby-theme-events.

If you fire up your theme, and the “data” directory doesn’t exist, gatsby-source-filesystem will throw an error. To guard against this, you’ll use the onPreBootstrap API hook to check if the data directory exists, and, if not, create it:

Set up to create data-driven pages

To actually create pages, you’ll need to:

  • Define the Event type
  • Define resolvers for custom fields on the Event type
  • Query for events

Define the “Event” type

  1. You’ll use the createTypes to create the new Event type
  2. The Event type will implement the typical Gatsby Node interface.
  3. You’ll use @dontInfer, because rather than Gatsby inferring fields, you’ll be defining them explicitly.
  4. In addition to an id field, you’ll create new fields for each data point associated with an event (name, location, startDate, endDate, url). To read more detail about creating types, check out the createTypes documentation.
  5. You’ll also create a slug field. You’ll notice your event data doesn’t include “slug” data. You’ll define this in the next step.

Define resolvers for any custom fields (slug)

Gatsby provides a createResolvers API hook. That gives you a function called createResolvers. Inside this function, you will set up a base path.

Here’s a deeper look at what’s happening in this createResolvers API hook.

You’ll default the basePath to the root path ("/"):

You’ll define a helper, slugify to help generate the slugs:

Then you’ll define a resolver for the slug field, on the Event type:

💡 The resolver function receives the source, which in this case is the Event node.

Test that this is working by running site again:

If you query this time for allEvent, you’ll see the Event data, including the new slugs:

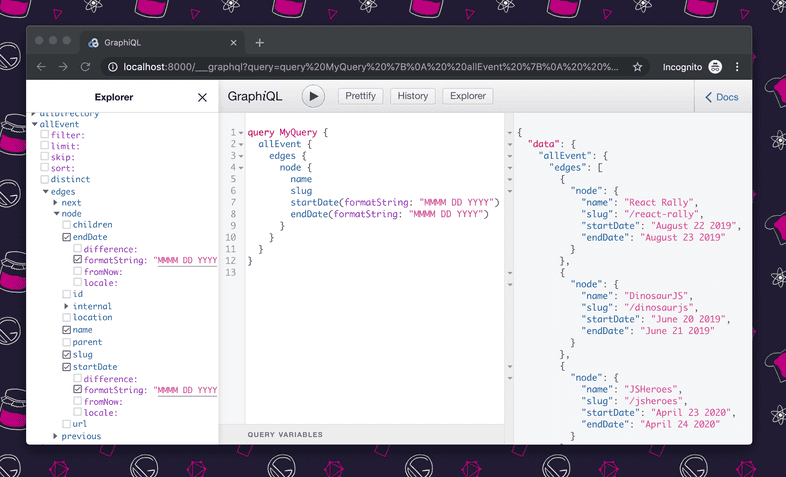

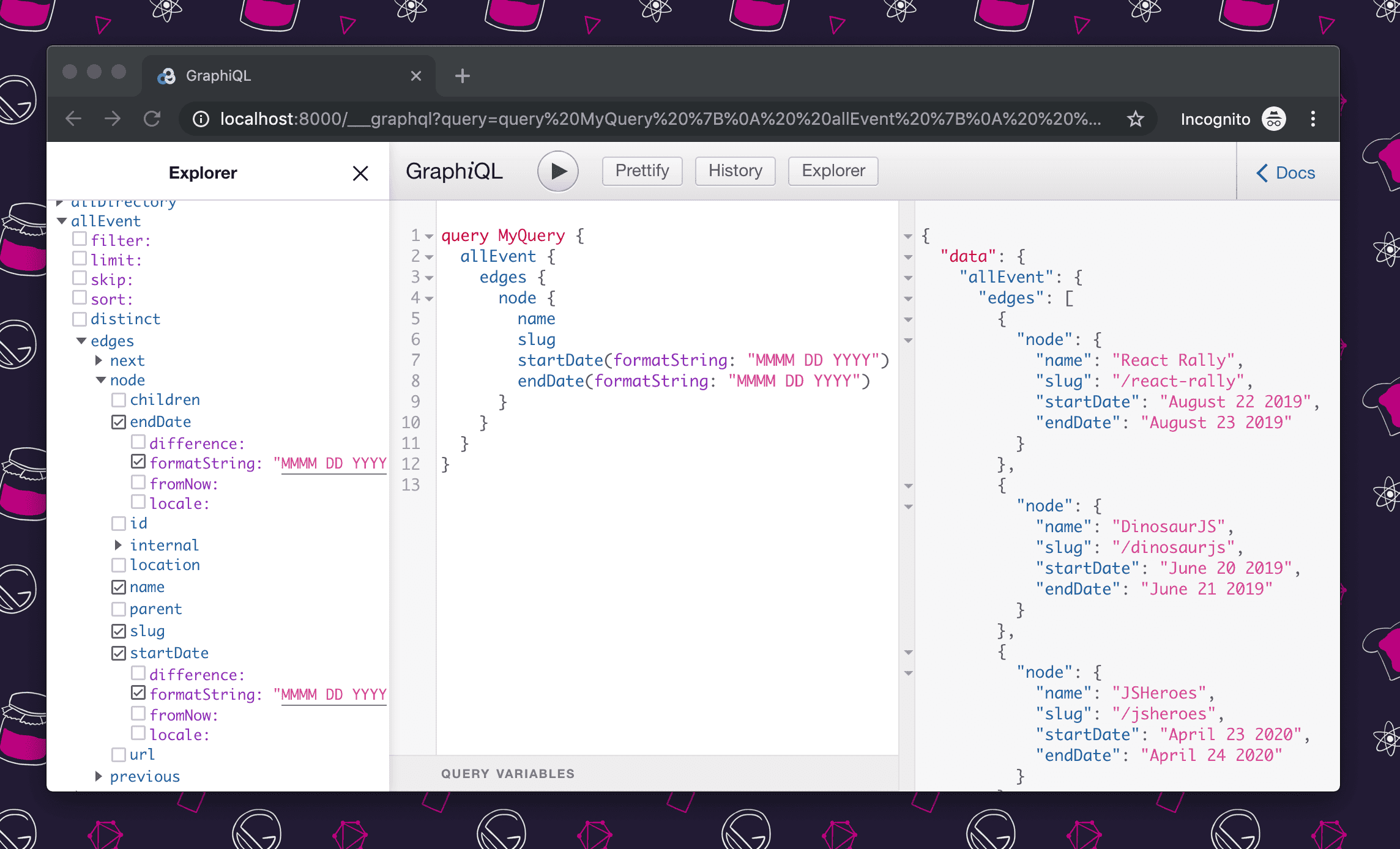

Successful execution of the previously described query, in the GraphiQL explorer

Create data-driven pages using GraphQL and createPages

The last step in gatsby-node.js is to create pages for both the event previews and individual event pages. To do that, you’ll use the createPages API hook.

💡 Note that the previous contents of gatsby-node.js should be left intact; they are omitted from the code snippets in this section for brevity.

Set up the call to create the root page

  • You’ll default the basePath to the root path ("/")
  • Then you’ll set up the call to the createPage action to create a page at the base path.
    • Note that the component listed doesn’t exist yet — you’ll create that shortly.

Query for events

  • You’ll retrieve all events, sorted by start date, in ascending order.
  • You’ll handle the error, in case the GraphQL query failed.

Create a page for each event

  • You’ll grab the event nodes queried from GraphQL.
  • You’ll loop over all the events that were returned, and use createPage to create a page for each event.
    • Note the “wishful programming” again — "./src/templates/event.js" doesn’t exist yet.

Create the “events” and “event” template components

The last step to make sure that these pages build is to create the page template components.

Create new files for the event template, and the events template:

Events template

Event template

Test that pages are building

To test that the root path ("/") and individual event pages are building successfully, run site in develop mode again:

You should see the placeholder events.js component at http://localhost:8000/.

If you hit http://localhost:8000/404 (for example — or any route that doesn’t exist) you should see a listing of event pages, all building with the placeholder event.js component.

Display sorted data with useStaticQuery

To show event data, you’ll import graphql and useStaticQuery from Gatsby in the events.js component.

Refactor the EventsTemplate component to include a static query for events data:

Create the UI to display event data

Start creating the UI to display the event data.

Create a general layout component

Create a new file at gatsby-theme-events/src/components/layout.js:

Create an events list component

Create a new file at gatsby-theme-events/src/components/event-list.js:

For now, this component will display a stringified object from the JSON data you send it on the events prop.

Add the layout and events list components to the events page

By updating the events.js template with the following code, you will:

  • Import the two new components.
  • Refactor the render method to use the new components, and give the <EventList> component the events data.

To test that it’s working, open up http://localhost:8000/ again. You should see the “Gatsby Events Theme” header from <Layout> component, and the stringified event data from the <EventList> component.

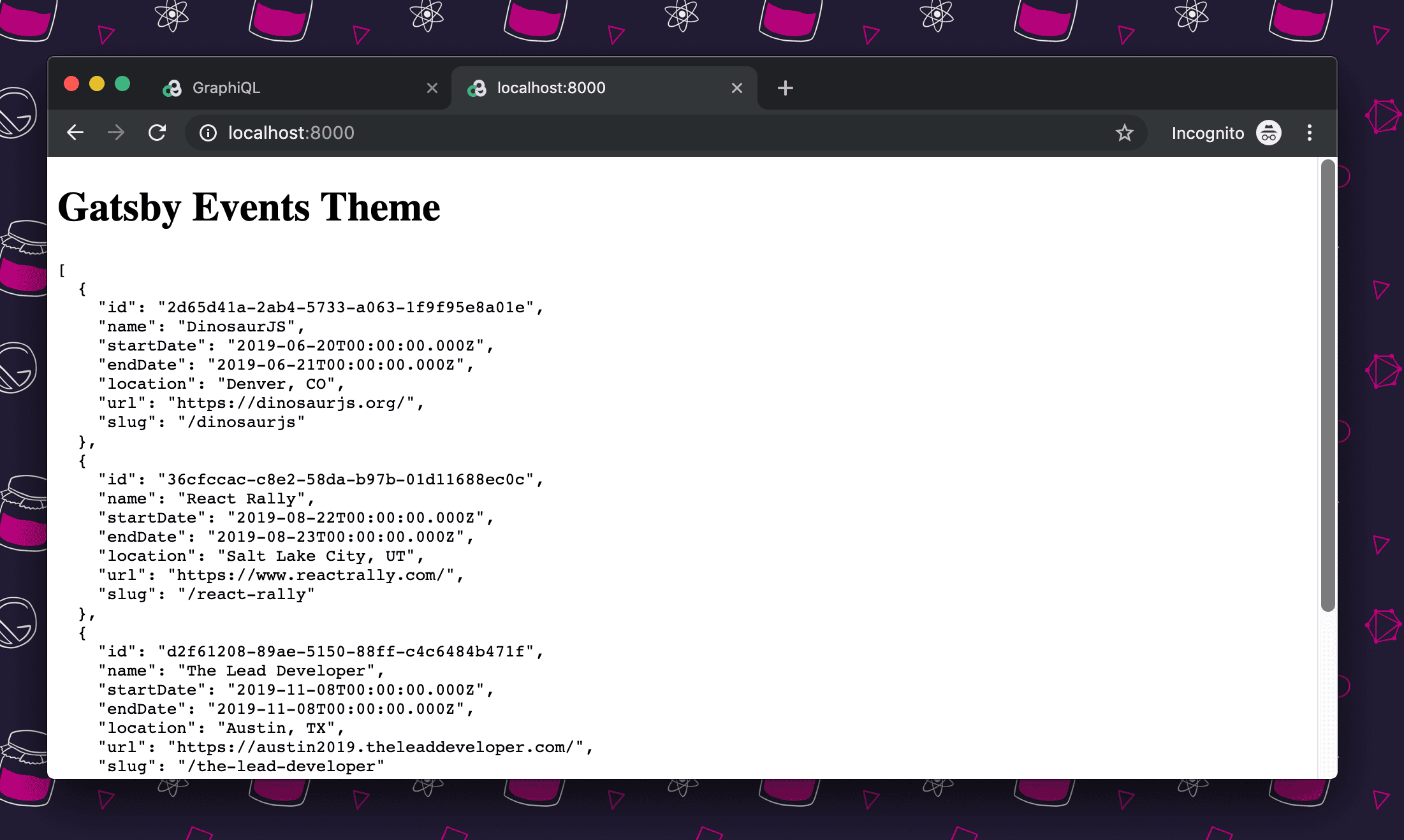

The root path view, with a header of "Gatsby Events Theme", and stringified JSON event data

Update the event list component

Update the event list component to use the event data in markup, rather than displaying the raw data:

  • You’ve created a header for “Upcoming Events”
  • You’ve mapped over all of the “event” records, displaying:
    • The event name (which links to the event page)
    • The date of the event
    • The location of the event

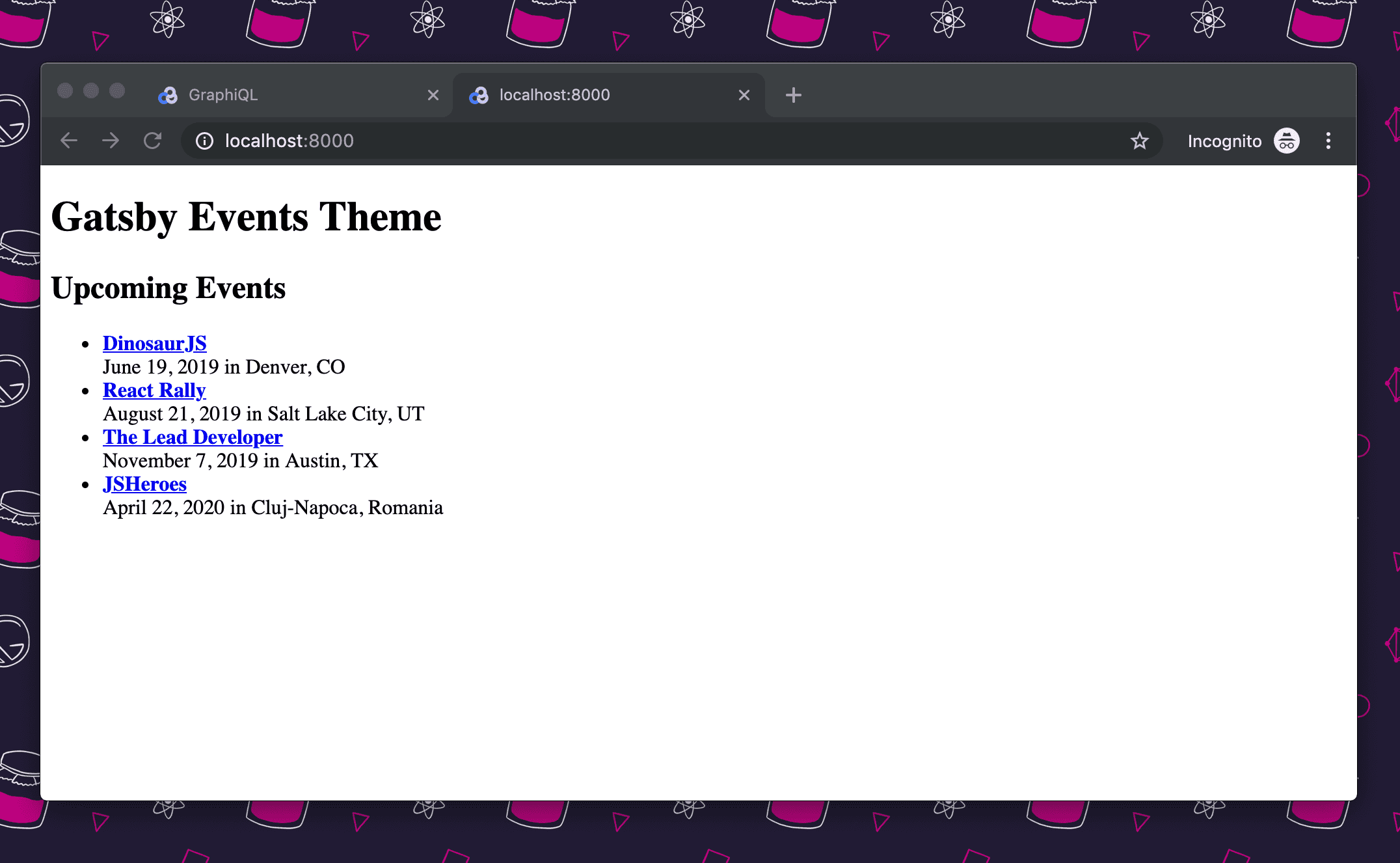

Checking http://localhost:8000/ again, you should see the new markup:

The events page, shown with markup defined

Display and query data by id with context and static queries

Similar to EventList, you’ll need to create a React component template for an individual Event page.

Add a page query

First, you’ll create a page query to query for individual events by id.

Modify the event template to access event data

There’s some wishful programming here again — the <Event> component doesn’t exist yet. Create that component in gatsby-theme-events/src/components/event.js:

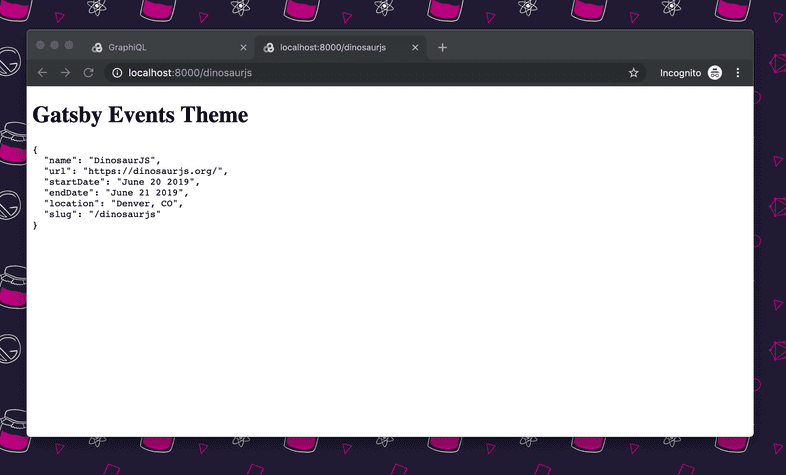

To start off, as before, run JSON.stringify on the props data getting passed to the component to make sure you’re getting the data you expect:

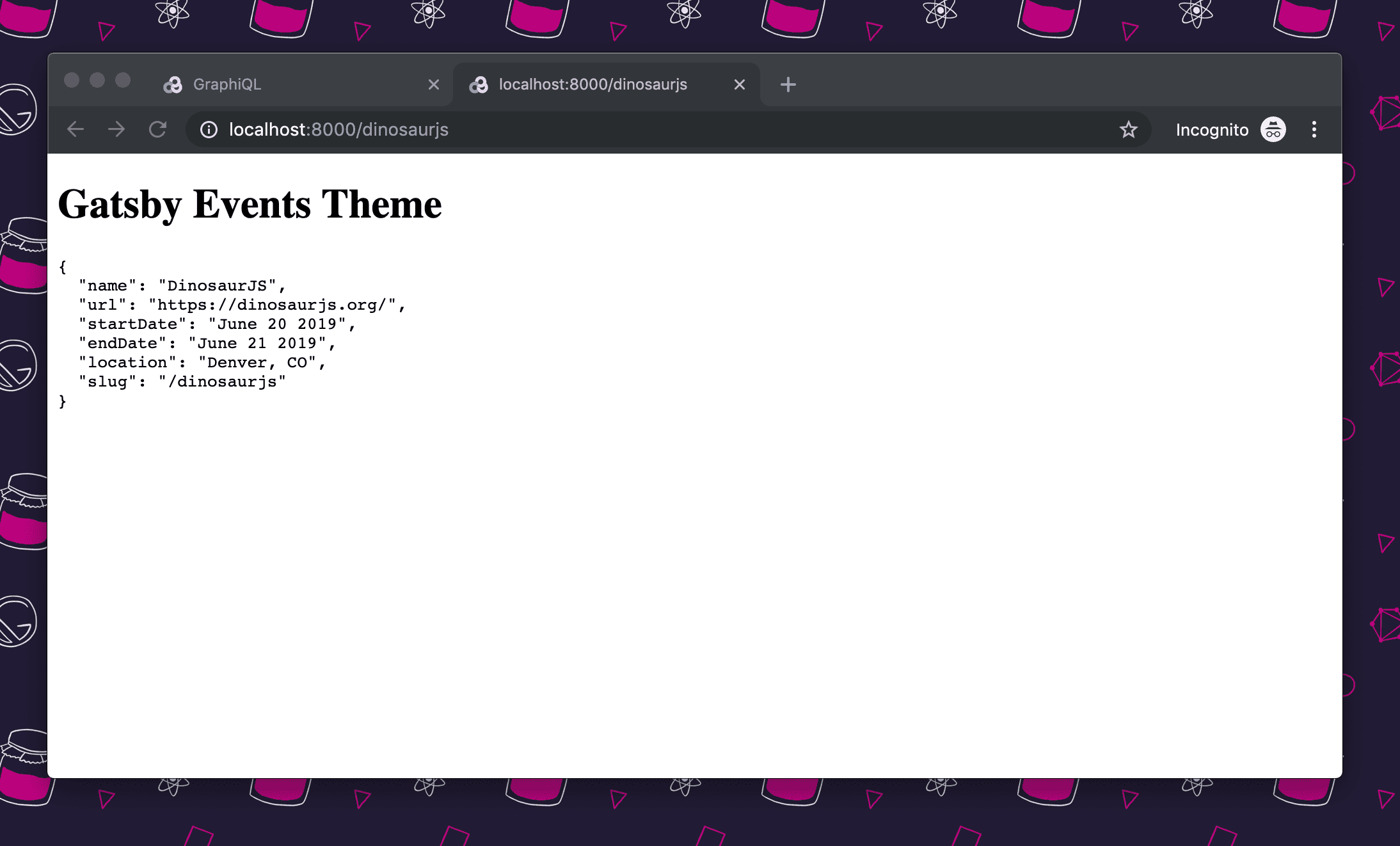

Successfully passing event data to individual event pages

Data is logging on the individual event pages. As before, now update the component to use markup, rather than displaying the raw data:

Now, the individual event page reflects the updated markup:

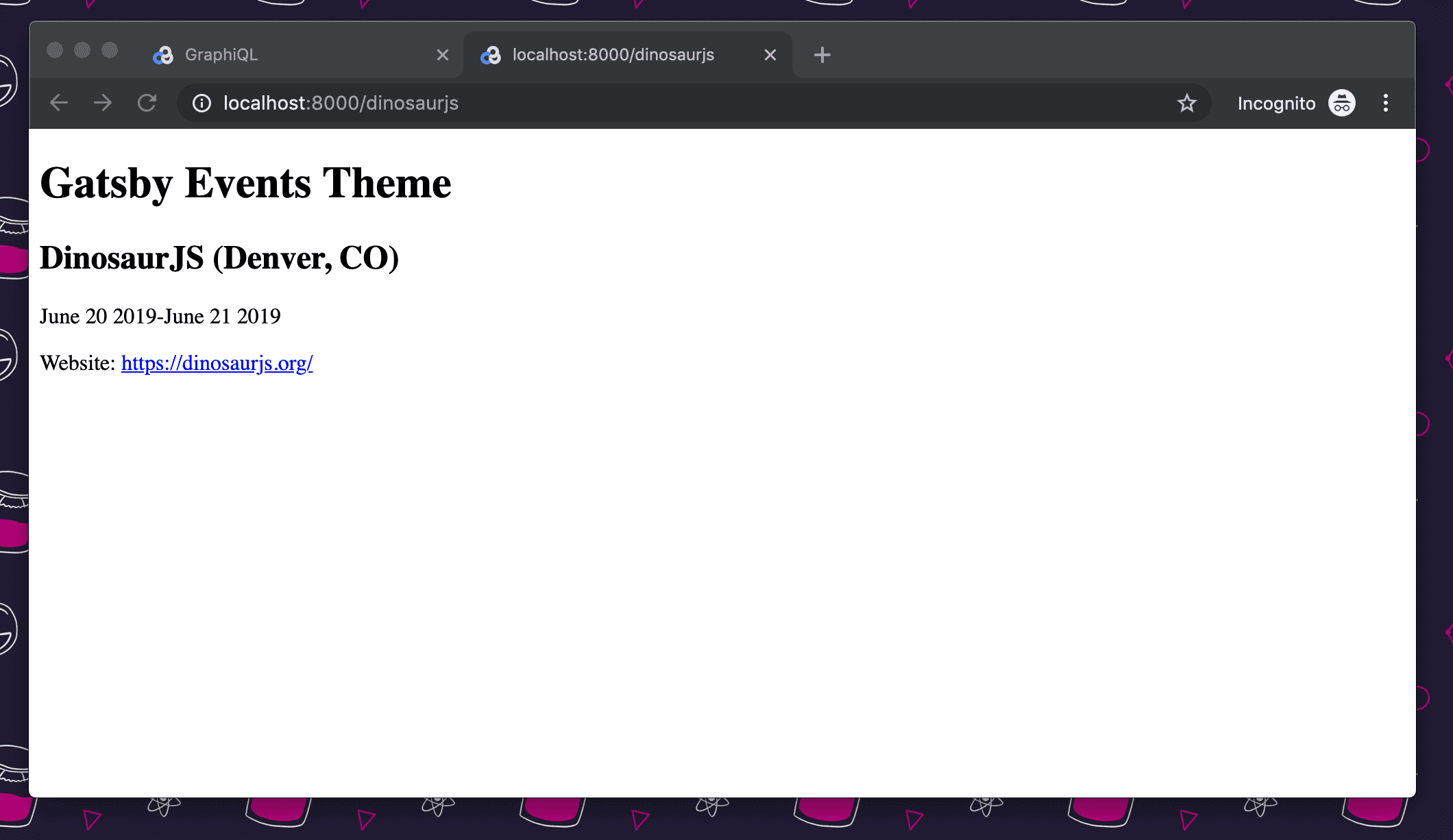

Updated markup in individual event page template

Style and format dates in React

Now you’ll refactor this component with some business logic to display the event dates in a way that’s more human-readable.

  • If the event is one-day: June 30 2019
  • If the event is multi-day: July 4-6, 2019
  • If the event spans different months: July 30 - August 2 2019

💡 This tutorial won’t go into detail on the date refactor as written. For more detail, refer to the Egghead lesson and transcript.

Configure a theme to take options

In a Gatsby theme, you can pass options both to gatsby-config.js, and to gatsby-node.js.

Update the gatsby-theme-events/gatsby-config.js to accept options:

The contentPath will default to ${__dirname}/data/, and the basePath will default to the root, ”/“.

In gatsby-node.js, the options that were added to the gatsby-config.js function are provided as a second argument to Gatsby’s API hooks.

Update the contentPath to use the option set in gatsby-config.js:

Note that the example above sets default values for options. This behavior was also included in the prior gatsby-config.js example. You only need to set default values once, but both mechanisms for doing so are valid.

💡 The function export in gatsby-config.js is only supported for themes. Gatsby sites still require the object export in gatsby-config.js.

Test out this new options-setting by making some adjustments to site.

Update site/gatsby-config.js

Update the gatsby-config.js file inside site:

  • contentPath is set to “events”. So, rather than looking in the default “data” directory for content, the site will be looking for content in an “events” directory.
  • basePath is set to “events”. So, rather than creating the events listing at the root ("/"), you should see an events listing page at /events.

To test this, run the site:

Once this is running, you’ll observe two things:

  1. An “events” directory has automatically been generated for you in site/events.
  2. If you hit http://localhost:8000/404 (or any other route that doesn’t exist), you’ll see that the site has created an /events page.

However, you don’t have any event data in the site. Copy the events.yml file from gatsby-theme-events/data into site/events. Then, restart the dev server:

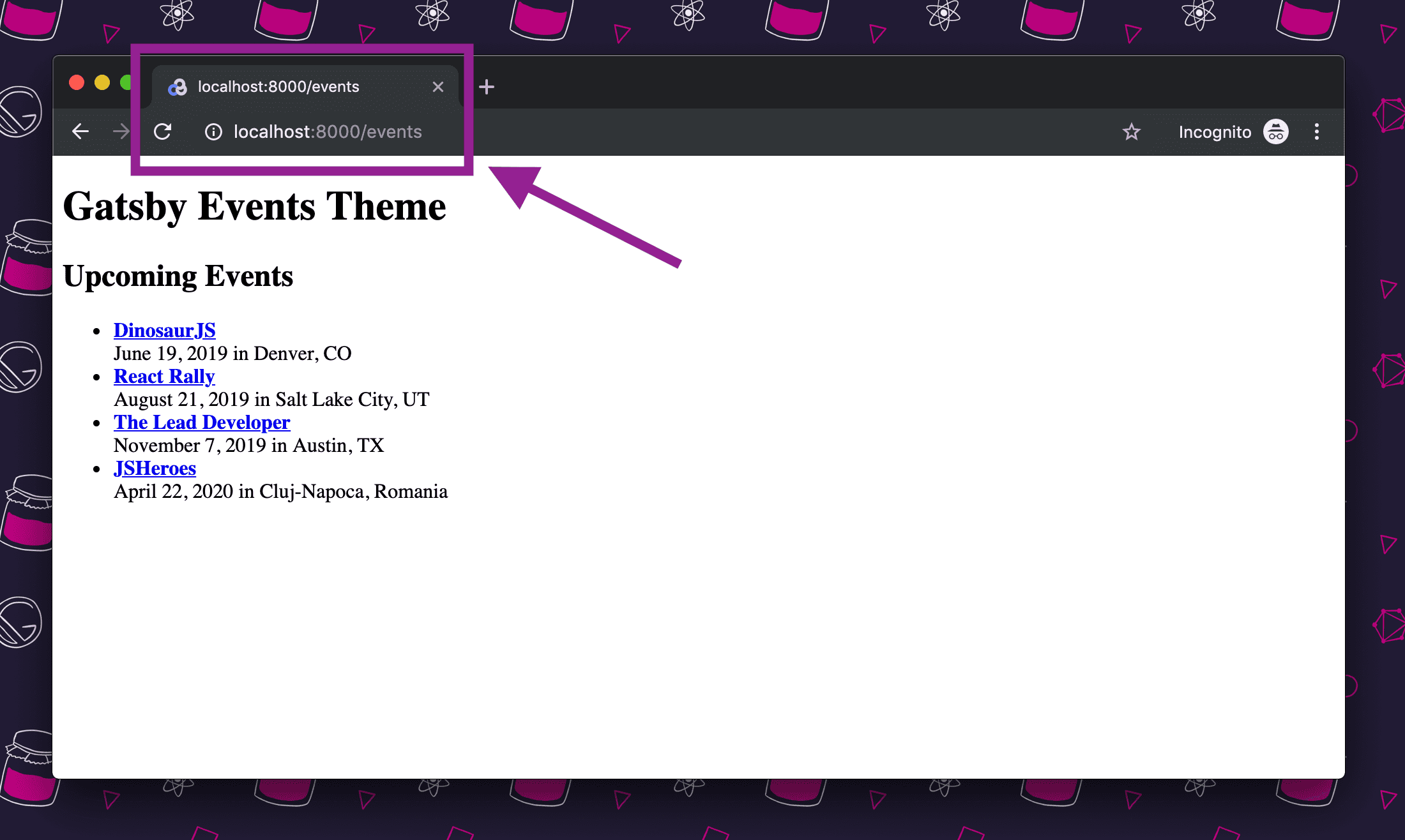

Running the site, the basepath is now `/events`

The events listing page will now be accessible at http://localhost:8000/events. Hitting http://localhost:8000/ will return a 404.

Make themes extendable with gatsby-plugin-theme-ui

You can make your theme styles extendable using the gatsby-plugin-theme-ui package.

Install dependencies:

Then, add the gatsby-plugin-theme-ui plugin to the gatsby-theme-events/gatsby-config.js file:

gatsby-plugin-theme-ui takes a global theme context object and makes it available to all themes using gatsby-plugin-theme-ui.

To use it, create a theme.js file in gatsby-theme-events/src:

gatsby-plugin-theme-ui uses Theme UI, which is part of a System UI network of tools, all of which follow the System UI theme specification.

Use and override a theme with component shadowing

To use the theme you’ve defined, you’ll need to use component shadowing to override the default theme in gatsby-plugin-theme-ui.

💡 “Component shadowing” is a mechanism to override the default rendering provided by a Gatsby theme. To dig deeper on component shadowing, check out this blog post on the subject.

You’ll use component shadowing to activate the custom theme defined in the previous step.

Create a new file at gatsby-theme-events/src/gatsby-plugin-theme-ui/index.js:

Now, refactor the layout.js component in gatsby-theme-events to actually use Theme UI.

First, import the Header, and Container components from Theme UI.

Next, refactor the layout.js component to use the Theme UI components:

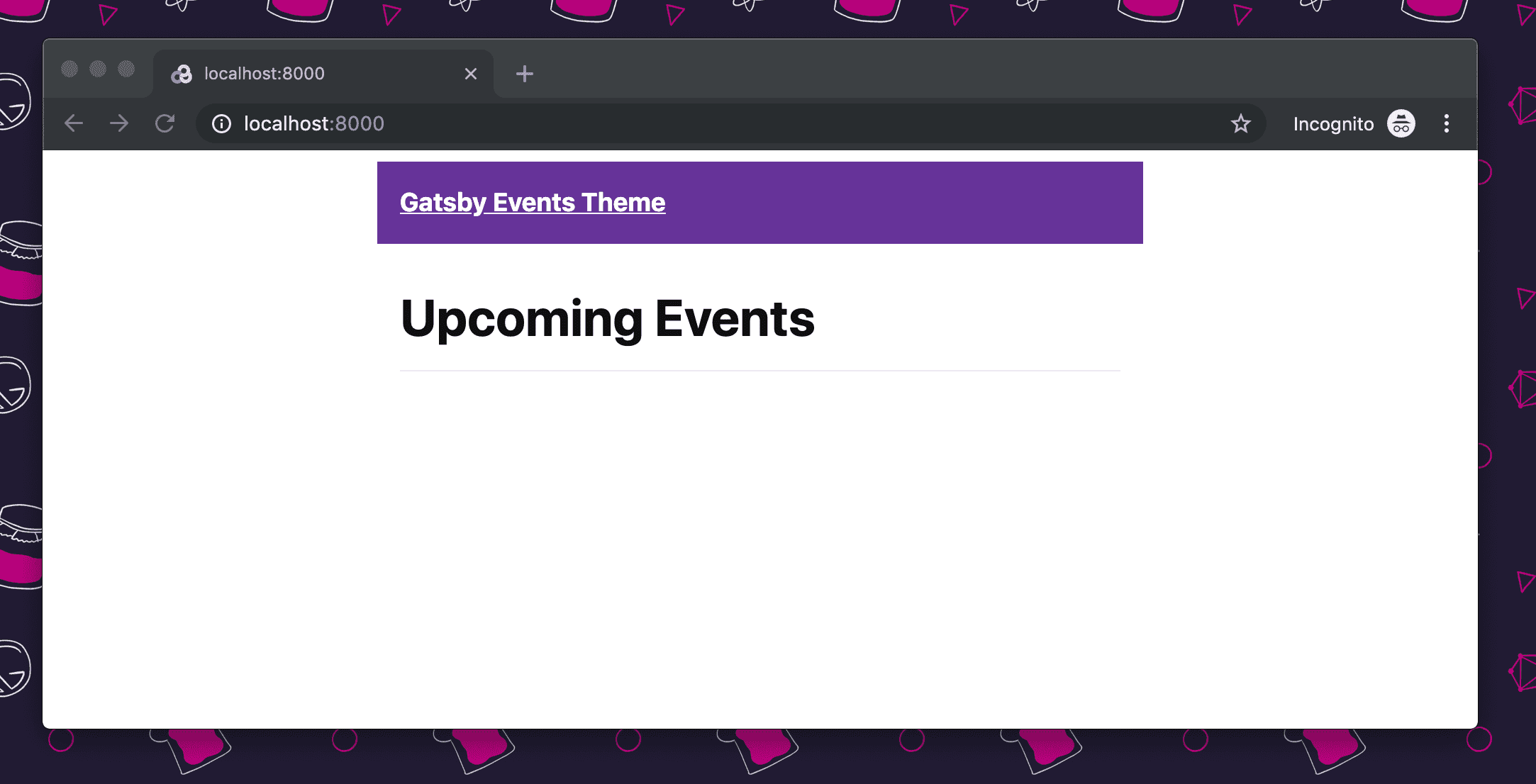

Run the site to see the theme changes that are starting to take effect:

Theme UI changes starting to take effect on the site. For example, the header is now purple.

To continue applying theme styles, you can use the Themed import from Theme UI. For example, in the event-list.js component, change the <h1>, <ul> and <li> elements to reference their themed styles:

By replacing the h1 with Themed.h1, ul with Themed.ul, and li with Themed.li, the theme styles for those elements have been applied:

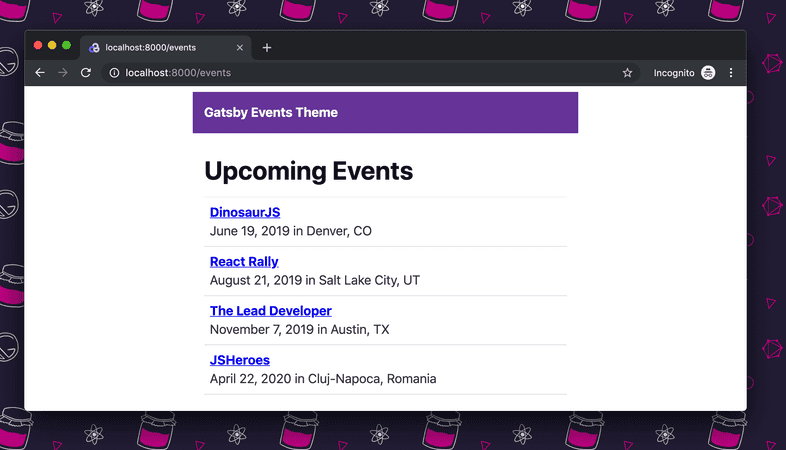

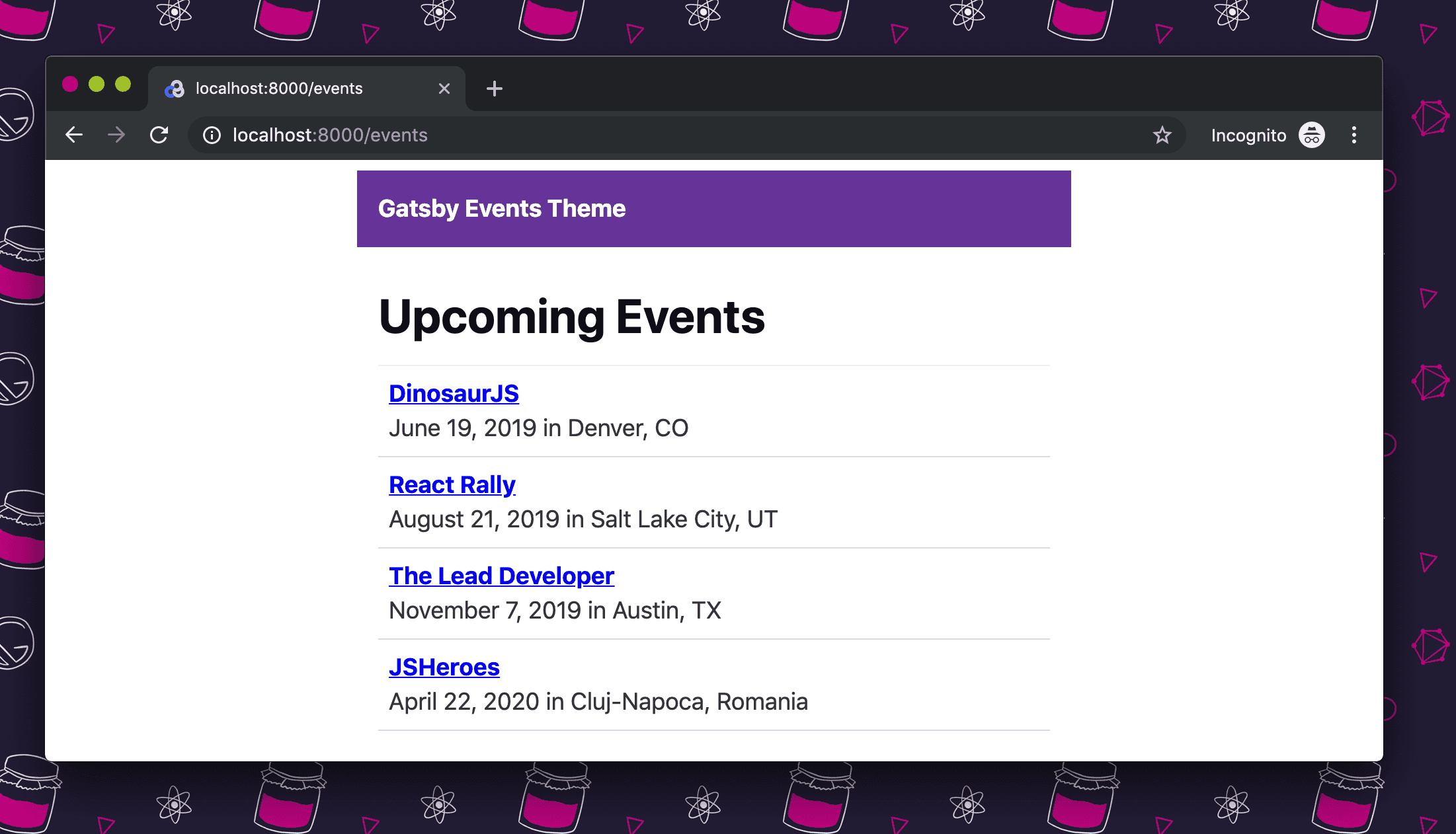

Theme UI style changes showing on the events listing.

Publish a theme to npm

By publishing your theme to npm, you make it available to pull in as a dependency for any of your projects, and for anyone in the community to use, too.

💡 Please note that publishing your theme is only required if you want to install it on other sites or share it with the community. If you’re only building this theme as a learning exercise, you can skip this step.

Namespace your theme

It’s important to namespace your theme. It helps differentiate between published packages, and avoid naming collisions.

Make sure you’re logged in to npm

To check whether you’re logged in to npm, run npm whoami:

If you’re logged in, it will return your npm username.

If you’re not logged in, it will return an error.

To log in, run npm adduser:

You’ll be prompted for your npm username and password, and an email. (If you don’t have one, create one now).

Now that your theme is namespaced, and you’re logged in to npm, you’re ready to publish.

Publish your theme

Change directories into the gatsby-theme-events directory and run npm publish:

💡 Because it’s namespaced, you’ll need to include public access.

Now it’s published! After publishing, you’ll be able to find your theme on npm at npmjs.com/{yourpackagename}

Consume a theme in a Gatsby application

Now it’s time to test the theme you’ve created!

Set up a new Gatsby site

Make a new directory called theme-test, and set up the project:

💡 Where it says @jlengstorf/gatsby-theme-events, use the theme you just published instead! Or if you didn’t want to actually publish your test theme, go ahead and use @jlengstorf/gatsby-theme-events.

Configure the theme

Open up the code for this new project.

Create a new gatsby-config.js file in the root:

Run the site

Making sure you’re in your /theme-test directory, run npm run develop to start the site.

The new site, running your new Gatsby theme.

Add some data

In your project, create a directory, data. Inside data, create a new file, events.yml:

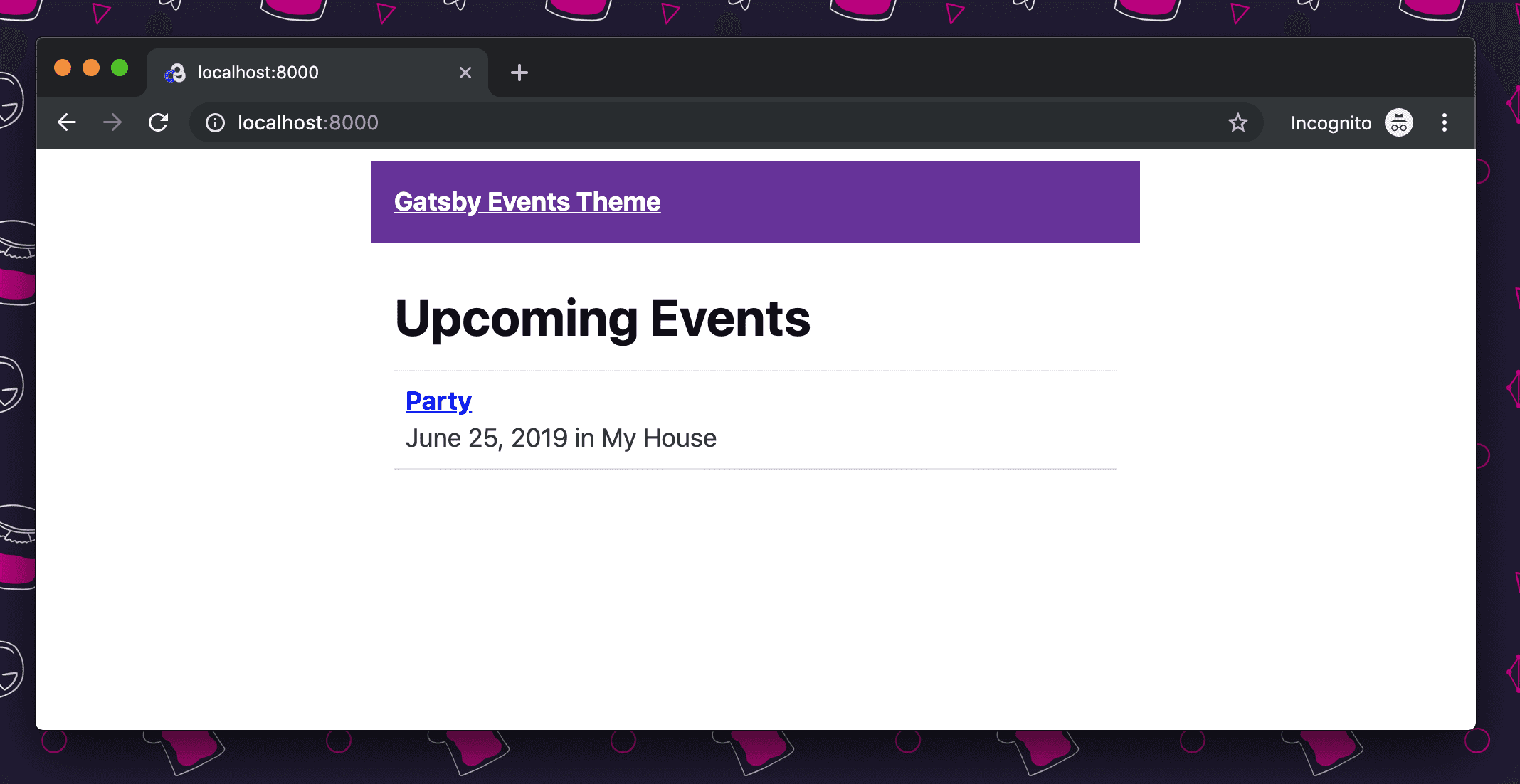

Save, and you’ll see the new event data in your project:

The new site, with your new test event data.

Use component shadowing to override theme components

“Component shadowing” in Gatsby themes allow you to override or modify components in the theme. Use your new “theme-test” project to experiment with this.

Override theme colors

In the root of theme-test, add a src folder. Inside src, add a folder titled gatsby-plugin-theme-ui.

Inside gatsby-plugin-theme-ui, create a new file, index.js.

Your file tree will look like this:

Inside the new index.js file, add the following:

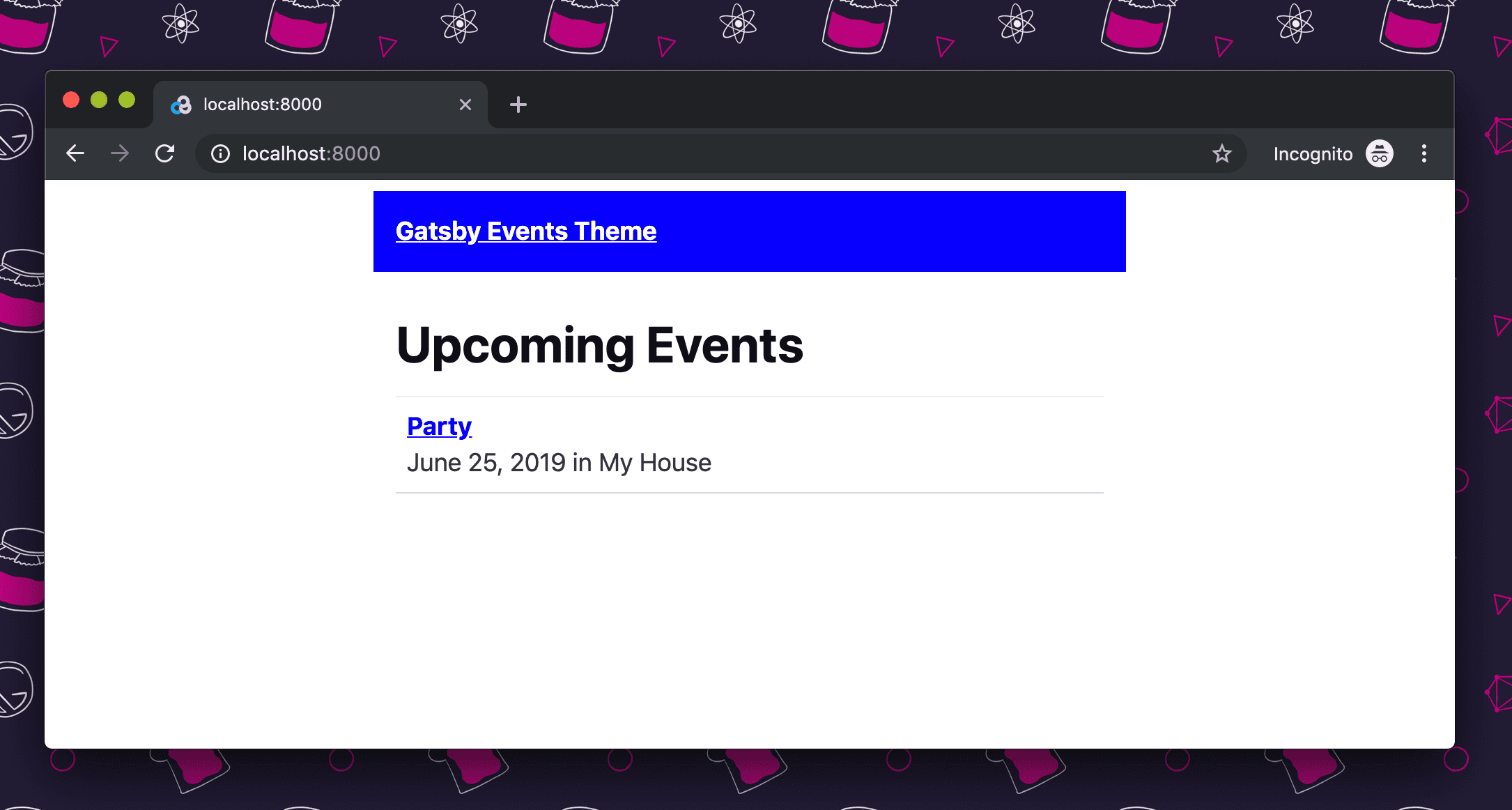

Restart the dev server for theme-test. Your local site should now have a blue header instead of a purple one:

Test site, with banner color overridden.

A few notable things are happening in this index.js file:

  • The theme import from @jlengstorf/gatsby-theme-events is the base UI theme from @jlengstorf/gatsby-theme-events.
  • The new object exported from index.js uses merge from Theme UI to deeply merge the base UI theme with the theme overrides of your choice. In this case, changing the primary color to blue.

Override an entire component

Inside src, create a folder with the same title as your theme.

💡 Note, with a namespaced theme, this will be two directories deep. For example, using the example of @jlengstorf/gatsby-theme-events, the file tree of your project will look like this:

Anything inside theme-test/src/@jlengstorf/gatsby-theme-events will “shadow” the components in @jlengstorf/gatsby-theme-events.

For example, create a new file to override the layout component: theme-test/src/@jlengstorf/gatsby-theme-events/components/layout.js.

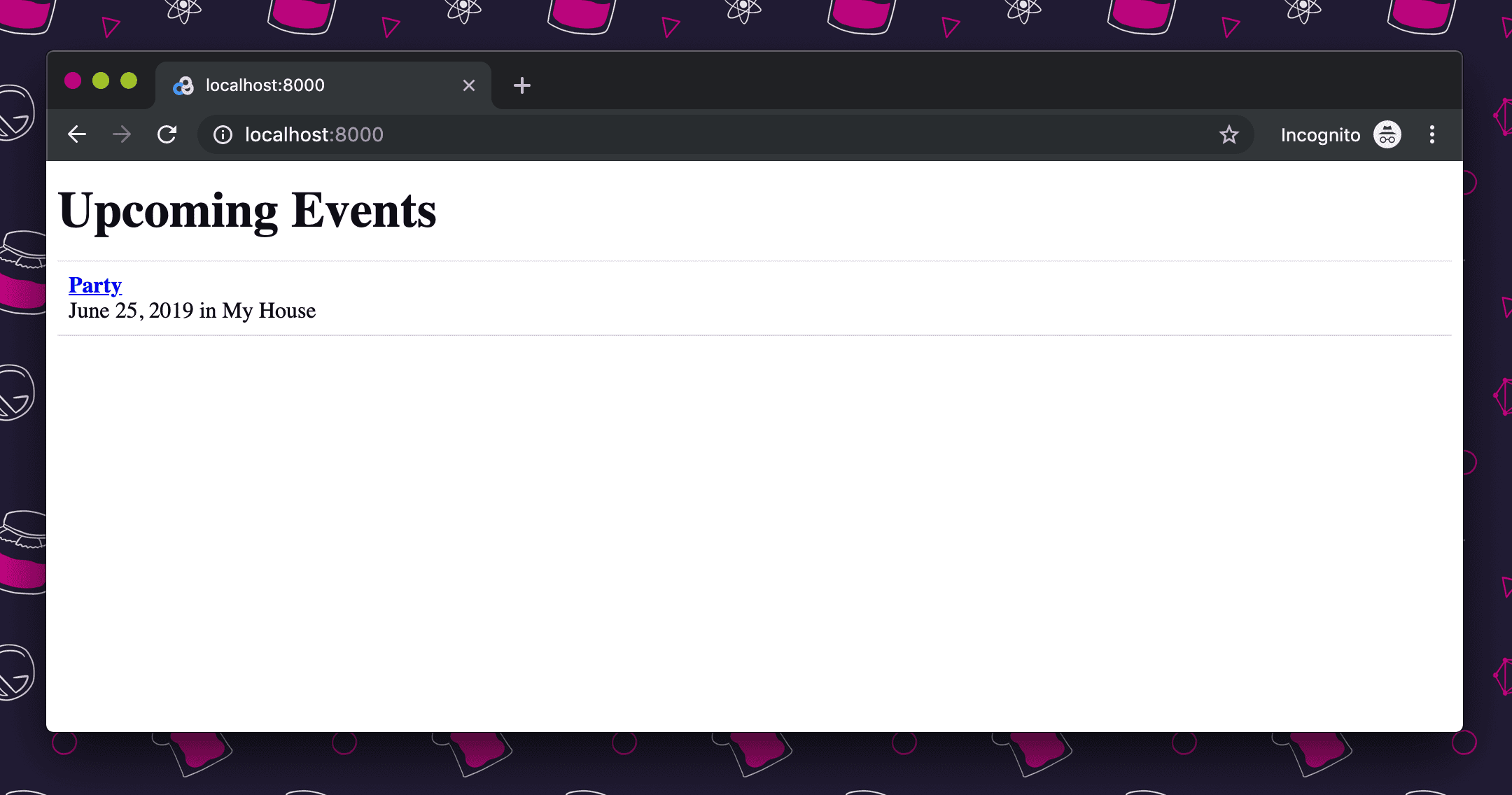

If you restart the development server, you’ll see all of the styles and structure from the theme have been stripped away, because the component has been completely overridden:

Test site, with layout component overridden.

Conclusion

Congratulations! You’ve set up, built, and customized your first Gatsby theme!

Further reading

Livestreams

Start building today on Netlify!
Edit this page on GitHub
© 2024 Gatsby, Inc.
