Part 6: Image CDN

Introduction

Gatsby has best-in-class image support with its gatsby-plugin-image feature. With it you can easily add responsive, optimized images to sites in all modern formats. Traditionally, images were downloaded and transformed to enable this behavior. Image CDN solves this by skipping image processing during the build, and instead deferring and offloading it to a dedicated image CDN. Visitors still get images in the most optimized formats such as AVIF and WebP, but site builds complete in a fraction of the time.

By the end of this part of the tutorial, you will be able to:

• Add Image CDN support to your source plugin
• Use Image CDN with gatsby-plugin-image in your example site

Add Image CDN to your plugin

Gatsby’s Image CDN feature can be added to any Gatsby source plugin. We recommend using it over manual file downloading for the reasons above. As long as your API gives back a URL to an image, you should be able to implement the required code. Basically, for Image CDN to work you need two things:

• A GraphQL root node type that implements the RemoteFile interface
• During node creation for that GraphQL node type, certain fields must exist on the node to match what RemoteFile expects

In Part 3 you learned that root node types need to implement the Node interface. Similarly to Node, RemoteFile is also provided by Gatsby itself and will handle all the complicated pieces of Image CDN behind the scenes.

The RemoteFile interface has the following shape:

For node types implementing RemoteFile this means:

• Always required are publicUrl (the url to the image/file), mimeType (e.g. image/jpg or application/pdf), and filename. publicUrl will be defined through url during node creation.
• width, height, resize, and gatsbyImage can be null. This is because the RemoteFile interface can also handle assets other than images, like PDFs.

For node types that are images this means: publicUrl, mimeType, filename, width, and height are mandatory.

Here’s an example of a GraphQL root node that implements RemoteFile and creates nodes with all required fields for images:

• Schema customization to implement RemoteFile on ImageAsset:

• Creating the ImageAsset node with all required fields:

As you can see the ImageAsset node holds all required fields but you can also add your own additional, arbitrary fields (like alt shown in the example). Once ImageAsset is created, you’ll be able to call gatsbyImage and resize on these GraphQL nodes and use Image CDN.

The URL you provide to the url field should link to the image version with the highest resolution, so if e.g. your API can provide image URLs in different sizes, pick the one with the best resolution.

One field that hasn’t been mentioned yet is the placeholderUrl. The <GatsbyImage /> component supports displaying a placeholder while the image loads. You can tell Image CDN to use your placeholderUrl to generate said placeholder. If your API supports returning different sized images through URL segments or URL params, you can place %width% and %height% into the URL. This tutorial uses Unsplash as it supports dynamically resizing images and thus both are used with the w query param. Alternatively, you could also provide the smallest possible image available from your API to this field.

Are width and height missing from the API response? Not every API returns width, height, and mimeType for an image. You can use probe-image-size to get these information from your remote URL.

Task: Write createAssetNode utility

Time to apply your theoretical knowledge about Image CDN to your own plugin.

You’ll create a new root node called Asset through a createAssetNode utility. You can think of it as a more specialized version of the nodeBuilder utility, only responsible for creating nodes that should become Asset and hence Image CDN capable. Creating a separate Asset type will also make schema customization in the next task easier.

1. Open plugin/src/constants.ts and add a new node type:

2. Open plugin/src/source-nodes.ts. Add the type imports for IRemoteImageNodeInput and IPostImageInput, create a shell for createAssetNode at the end of the file:

   Similar to nodeBuilder it receives gatsbyApi to call the various node helpers but data must be in the shape of IPostImageInput. This TypeScript type is identical to the image object shape inside each post in api/src/data.ts.

3. Create the function body for createAssetNode by following what nodeBuilder is doing:

   TypeScript should complain about missing fields on asstNode:

   These are exactly the fields that are required for image assets.

4. Add the missing fields to the node:

   And that’s it, you can create Asset nodes now! In the next task you’ll actually use createAssetNode.

Task: Apply schema customizations

So far your createAssetNode utility isn’t doing anything. You’ll need to use it inside the nodeBuilder utility to add an additional image field to Post nodes. However, this will only work once you have successfully implemented the second requirement of Image CDN: That Asset implements the RemoteFile interface.

A lot of this task builds upon your knowledge from Part 3, specifically the foreign-key relationship section. Feel free to revisit those sections if you need a refresher.

You’ll implement the RemoteFile interface for Asset and make it a root node. Then you’ll create a foreign-key relationship between Asset and the image field on Post.

1. Open plugin/src/create-schema-customization.ts. Change the name of PostImage to Asset and implement both Node and RemoteFile for it:

   Nodes that createAssetNode creates will be GraphQL root nodes now.

   Type builder example

   If you’re not using the SDL syntax but type builders, you’d add it like this:

2. Create a foreign-key relationship between Post and Asset through @link on the image field.

   If you remember from Part 3, the default behavior of @link is to use the id from the target node. Keep that in mind for the following instructions.

3. Open the plugin/src/source-nodes.ts file and add a return statement to the createAssetNode function. Return the generated id:

4. A node of type Post should have the generated id of Asset as its image field. Because only posts can have images, you can conditionally add data to the node if certain conditions are met like this:

5. The some-id string should be replaced by the Asset id of course. Since createAssetNode returns the id, you can use its result:

6. Restart the develop:site script and open GraphiQL at http://localhost:8000/___graphql. Run the following query:

   You should get a result back like this:

   It works! Note: <long-string> is added above to make things easier to read. If you’re seeing an error, stop the develop:site script, run yarn clean:site and retry yarn develop:site again.

   In the next task you’ll be able to use the result from gatsbyImage inside your pages.

Use Image CDN in your site

When using gatsby-plugin-image you use the gatsbyImageData GraphQL field to access the necessary data. With Image CDN this name changes to gatsbyImage — you’ve learned this in the last task. The only relevant difference between gatsbyImageData and gatsbyImage is that the latter requires a width or height argument.

Refer to the gatsby-plugin-image how-to for instructions on its usage as this tutorial won’t go into details about that.

Task: Update individual post pages

1. Open site/src/pages/{Post.slug}.tsx and add image to the GraphQL query:

2. Import the necessary gatsby-plugin-image helpers and components and use them with image:

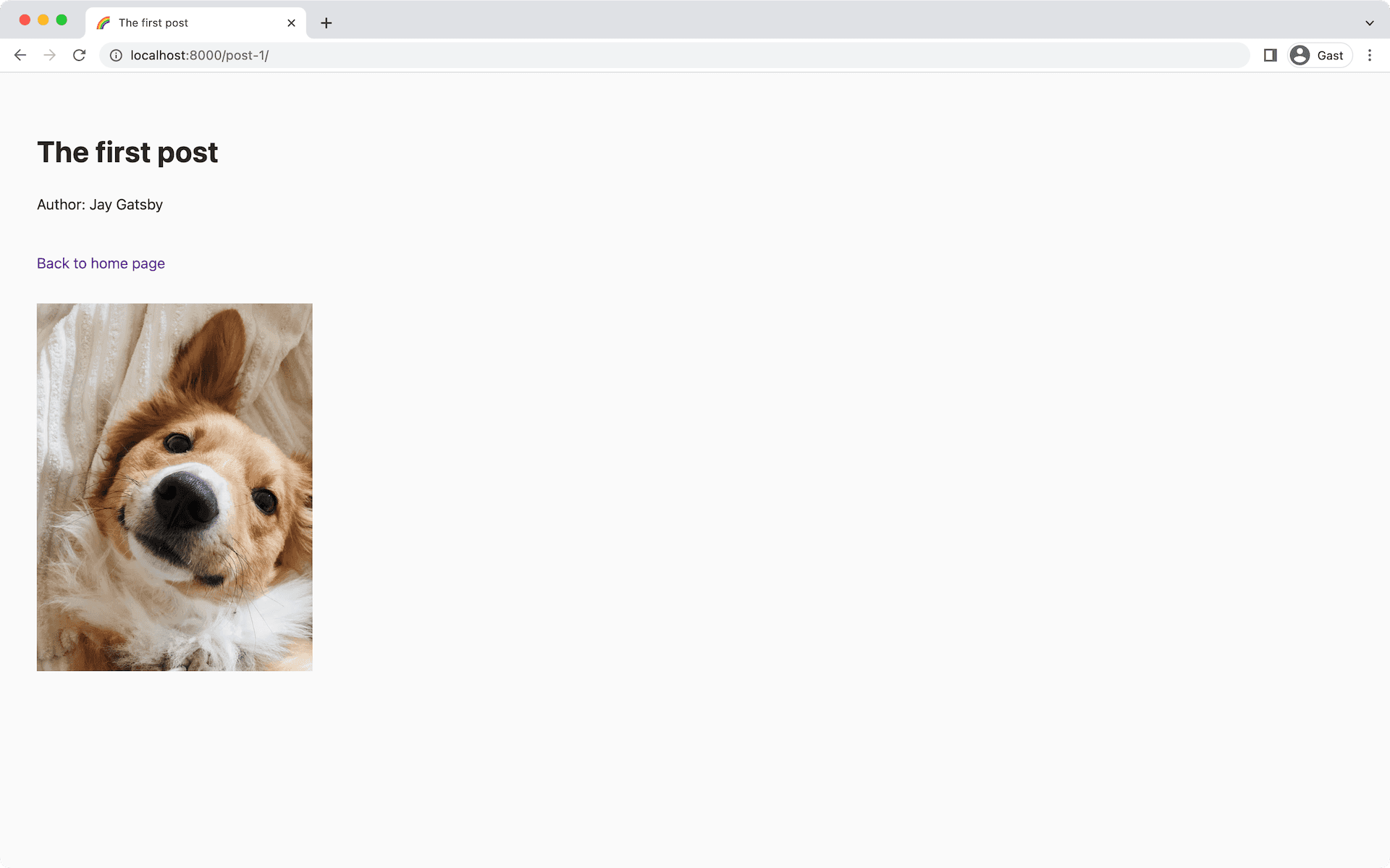

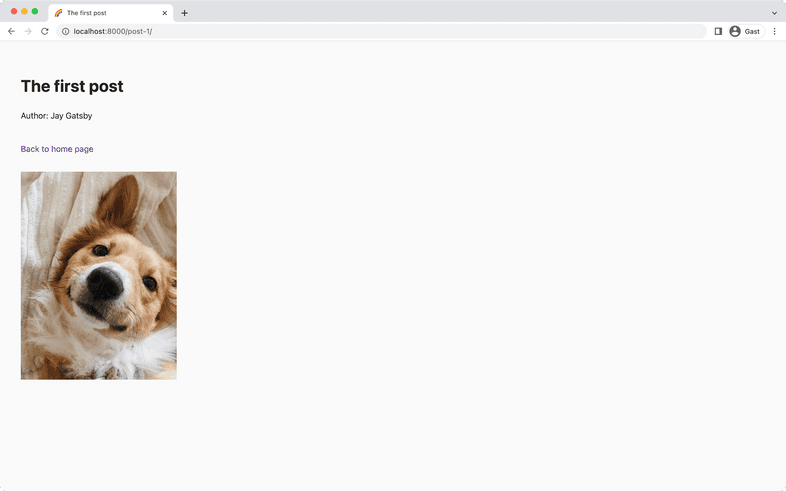

3. Go to http://localhost:8000/post-1/. You should see a dog image on the page:



Summary

Magnificent! Your posts now have photos of cute dogs.

Take a moment to think back on what you’ve learned so far. Challenge yourself to answer the following questions from memory:

• What are the two steps required to implement Image CDN in a source plugin?
• What types of files can RemoteFile support?
• What are the mandatory fields that RemoteFile expects?

Key takeaways

• By using Image CDN you can offload the heavy image generation to dedicated providers, giving users of your source plugin great build performance.
• GraphQL root node types of your plugin that represent files and/or images should implement the RemoteFile interface and have all required fields on their node.
• You can use gatsbyImage in your GraphQL result together with gatsby-plugin-image like you’re used to.

What’s coming next?

In Part 7 advanced topics like Content Sync, testing, debugging, and more will be explained.
